TAMP, JUMPING JACK (RAMMER)


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

4 Hour: $75.00

Daily: $95.00

Weekly: $260.00

Monthly: $535.00

Quantity: for a period of
4 hour(s) day(s) week(s) month(s)

Additional Information

3 MODELS AVAILABLE:
CHICAGO PNEUMATIC MS695 JUMPING JACK TAMPER / RAMMER (4-STROKE), or
WACKER NEUSON - BS 50-2I RAMMER / JUMPING JACK TAMP (2-STROKE)
BOMAG - BT50 (4 STROKE)

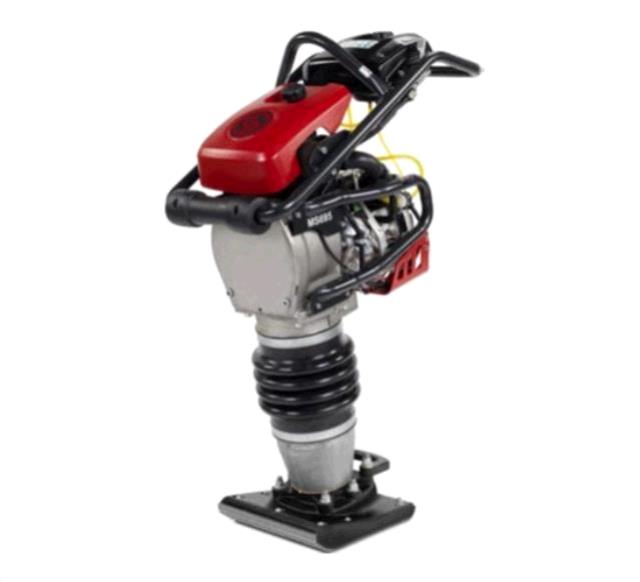

CHICAGO PNEUMATIC MS695 JUMPING JACK TAMPER / RAMMER (4-STROKE ENGINE)
TAMPERS MS 695
Operating Weight kg 70
Impact Force kN
Max. Speed m/min 15-18
Frequency Hz 11.9
Plate Width mm 280
Engine Honda GXR 120 Gasoline
Power at Rated Speed kW at rpm 2.6
Sound Power Level Guaranteed dB(A) 106
Sound Pressure at Operator s Ear dB(A) 92
H/A Vibrations m/s 6.4
Part Number 3382 0006 17 1
Technical Details
Part Number 3382000617
Operating Weight (lbs) 154
Centrifugal Force (lbs) 3,330
Speed (ft/min) 49-59
Shoe Size (WxL, in) 11 x 13
Engine Honda GXR 120, 3.5 HP
Sound Power, Guaranteed (LwAdB(A) 106
Sound Pressure at Operators Ear (LwAdB(A) 92
H/A Vibrations, (m/s2) 6.4
WACKER NEUSON - BS 50-2I RAMMER / JUMPING JACK TAMP
Operating data:
Operating weight lb 130
Ramming shoe size (WxL) * in 11 x 13
L x W x H in 26.5 x 13.5 x 37
Percussion rate max. blows/min 700
Stroke at the ramming shoe in 2.51
Operating speed ft/min 31.2
Surface capacity Compaction ft /h 1,711.5
Impact Force/Blow: 3,245 lbs
Engine / Motor group extra:
Engine / Motor type air-cooled single-cylinder two-cycle gasoline engine
Engine / Motor manufacturer Wacker Neuson
Engine / Motor WM 80
Displacement in 4.88
Fuel consumption US gal/h 0.26
Operating performance Max rated Power ISO 3046-1 hp 2.3
at rpm rpm 4,400
Tank capacity (fuel) US qt 3.17
Tank capacity (oil) US qt 1.37
Gasoline / oil mixture Ratio 120:1

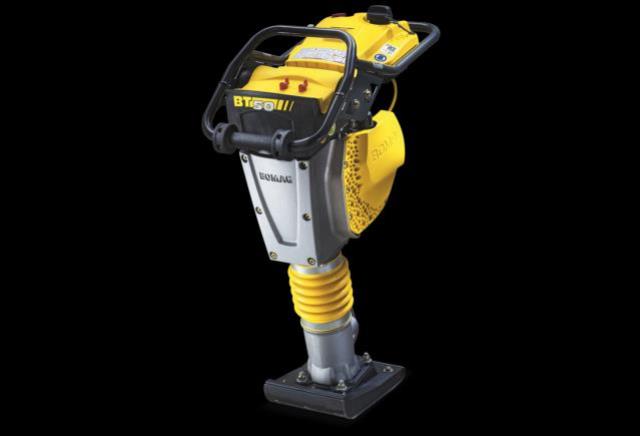

BOMAG BT50
OPERATING WEIGHT CECE 128LB
BASIC WEIGHT 126LB
WORKING WIDTH 11"
WORKING SPEED MAX 65.6 FT/MIN
AREA COVERAGE MAX 2970.9 FT2/H
ENGINE - HONDA GXR 120
EMISSION - STAGE CARB PHASE 3
COOLING - AIR
NUMBER OF CYLINDERS - 1
PERFORMANCE - 3.8HP
FUEL - GASOLINE
DRIVE SYSTEM - MECH
FUEL CONSUMPTION - .2 GAL/H
EXCITER SYSTEM
FREQUENCY - 600-708 VPM
IMPACT FORCE - 3372 LB
JUMPING HEIGHT - 2.8 IN
FUEL CAPACITY - .8 GAL
DIMENSIONS
TOTAL WIDTH 13.8
BASE WIDTH 11
HEIGHT 40.6
BASE LENGTH 13.2

* Prices are subject to change.
* Delivery or trailer rental fees, if applicable, will be added at time of reservation.

* Please call us with any questions about our tamp jumping jack rammer in Spartanburg, Greenville, Gaffney, Simpsonville, and the Upstate Region of South Carolina.
